Product Information
At BBD Engineers, our Two Roll Rubber Mixing Mill is built for one thing — reliable, consistent rubber compounding. Manufactured using quality-graded materials, each mill is assembled and tested before leaving our facility.
​
The mill features chilled cast iron rolls with surface hardness of 500–540 BHN, mounted on anti-friction spherical roller bearings for smooth, long-life operation. A heavy duty inline helical gearbox paired with a TEFC energy efficient motor ensures consistent power delivery with minimal maintenance.
​
Nip adjustment is handled via a gearbox-operated hand wheel, giving operators precise control over the roll gap. Automatic force feed grease lubrication keeps the machine running efficiently across long production cycles.
​

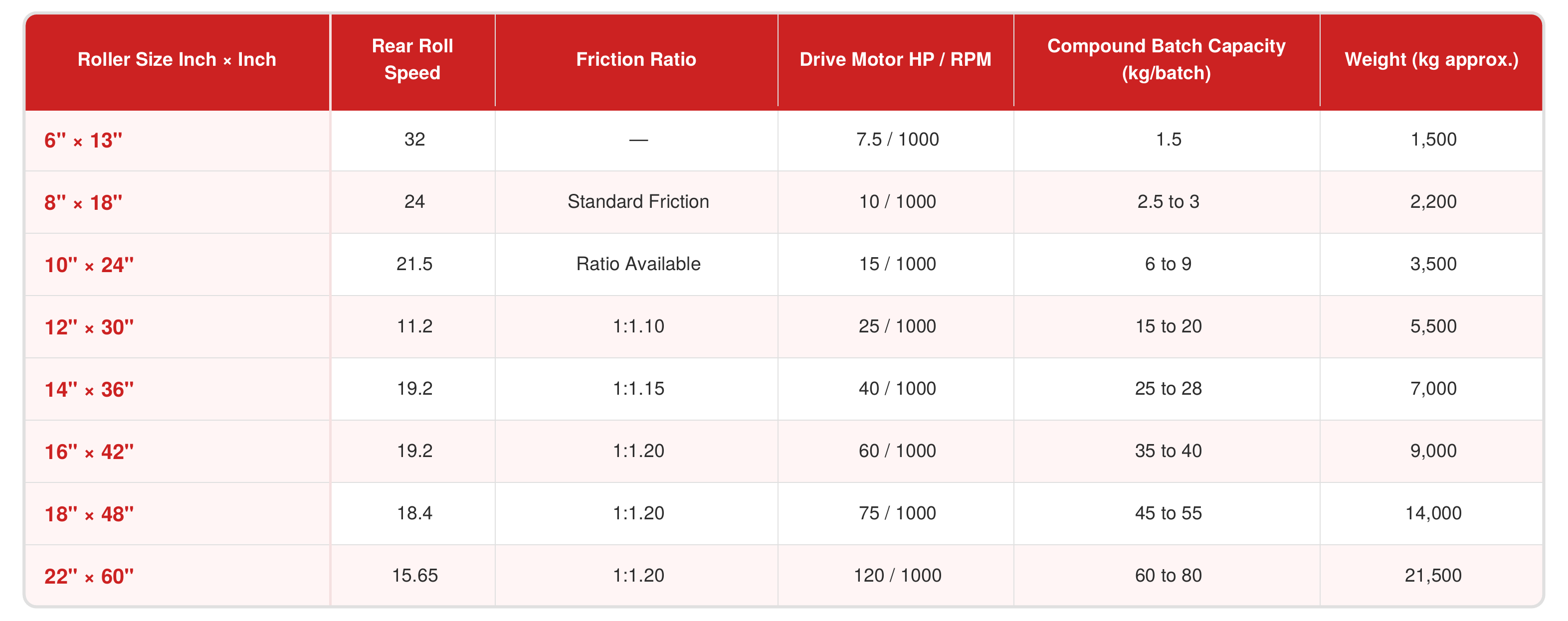

Suitable for natural rubber, synthetic compounds, EPDM, butyl and a wide range of rubber formulations — available in sizes from 6"×13" up to 22"×60" to match your production scale.
Features
- Chilled cast iron rolls with surface hardness 500–540 BHN — built for heavy-duty, continuous use
- Gearbox-operated hand wheel for precise nip gap adjustment between rolls
- Automatic force feed grease lubrication via grease pump — less maintenance, longer machine life
- Emergency braking system for immediate roll stoppage — operator safety built in as standard
- Heavy duty inline helical gearbox for consistent high-torque operation under full load
- TEFC energy efficient motor — reliable power delivery with lower running costs

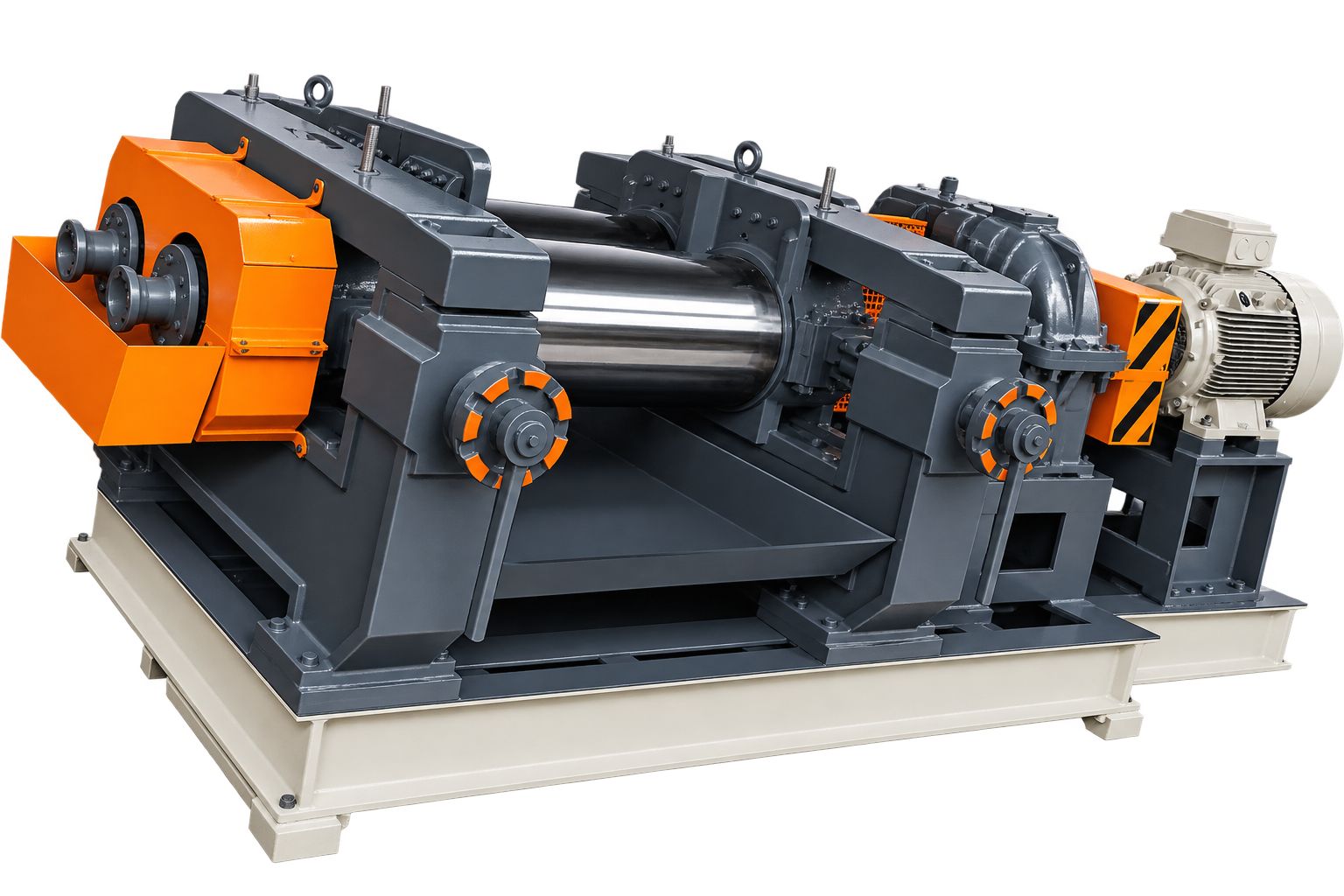

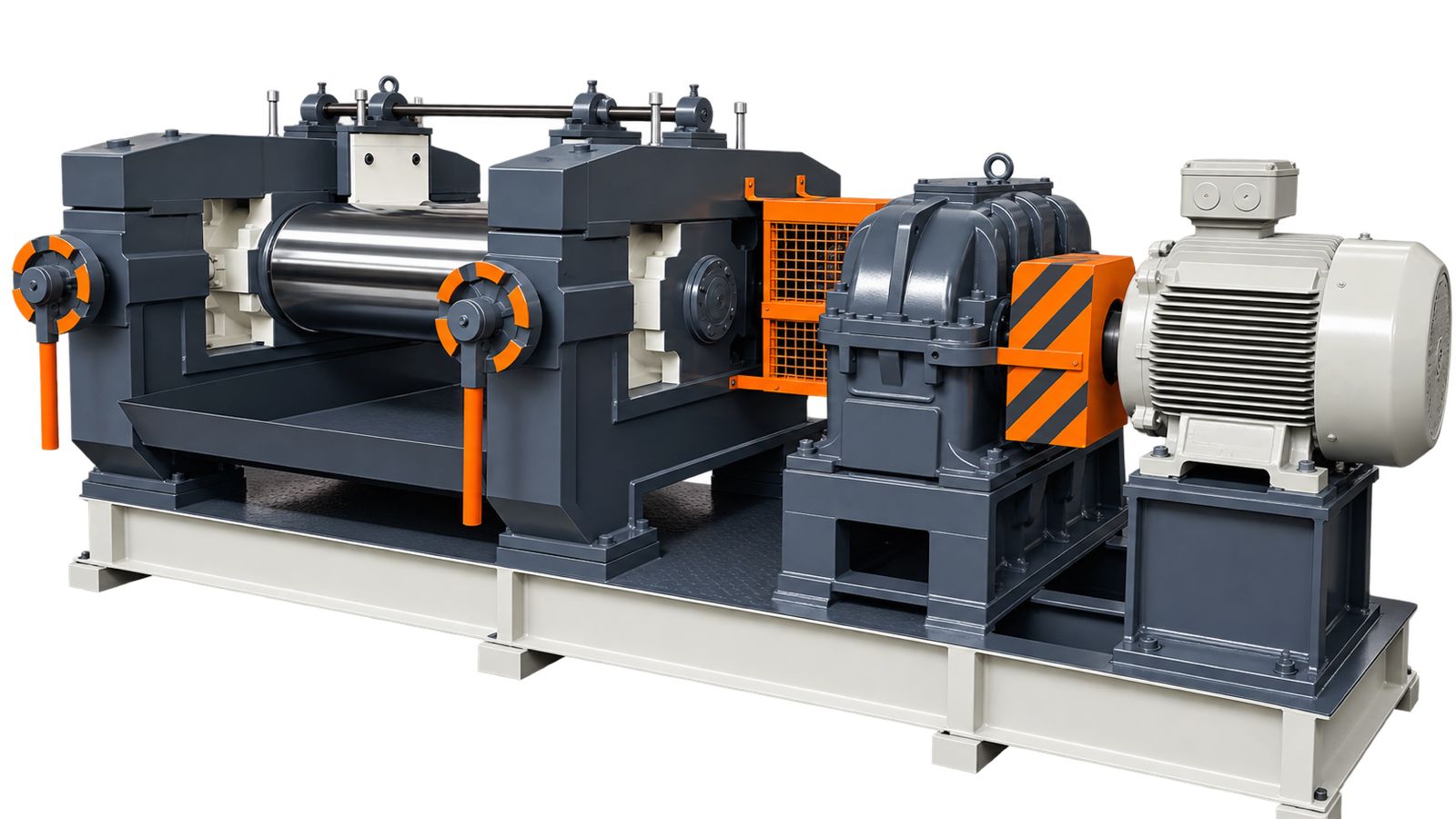

Our Mixing Mill, Through the Lens
A closer look at the machines we manufacture at our facility.
